济南卷帘门厂家为大家介绍产品控制要求与方法

来源:http://www.jnzxmy.com 日期:2020-09-07 发布人:
卷帘门能够满足防火要求,在一定时间内,可以起到阻止火势蔓延的作用。用于防火分隔,在各大建筑中使用的非常普遍,它主要由帘板、卷轴、电动机、导轨、支架等组成。为了能让产品发挥更好的使用效果,济南卷帘门厂家为大家介绍产品控制要求与方法。
The rolling shutter door can meet the requirements of fire prevention and prevent the spread of fire in a certain period of time. It is mainly composed of curtain board, reel, motor, guide rail, bracket, etc. In order to make the product play a better use effect, Jinan roller shutter door manufacturer introduces the product control requirements and methods.
防火卷帘门厂家产品控制要求:
Product control requirements of fireproof rolling shutter door manufacturer:
相关规范要求防火卷帘门控制满足三种控制方式:
According to the relevant specifications, the fire shutter door control should meet three control modes:
现场电动控制:门两侧的控制按钮。
Field electric control: control buttons on both sides of the door.


火灾报警联动控制:控制回路预留的远程控制开关量触点。
Fire alarm linkage control: remote control switch value contact reserved in control circuit.
手动控制方式:又称机械控制的功能,疏散通道上的防火卷帘门两侧设置的启闭装置。
Manual control mode: also known as mechanical control function, the opening and closing devices on both sides of the fire shutter door on the evacuation channel.
除上述三种控制方式外,防火卷帘门还加设了温度熔断控制装置。因为,虽然卷帘门采用了双电源及多种控制方式,如果发生火灾时电源断电就无法动作,虽然设有手动控制装置,人员无法在火灾现场停留,也就很难手动操纵卷帘下降。下面,济南卷帘门厂家为大家介绍产品的控制方法是如何在应用中体现的。
In addition to the above three control modes, the fire shutter door is also equipped with a temperature fuse control device. Because, although the rolling shutter door adopts dual power supply and multiple control modes, if the power supply is cut off in case of fire, it can not act. Although there is a manual control device, personnel can not stay at the fire site, so it is difficult to manually control the rolling shutter to descend. Next, Jinan roller shutter door manufacturers to introduce the product control method is how to reflect in the application.

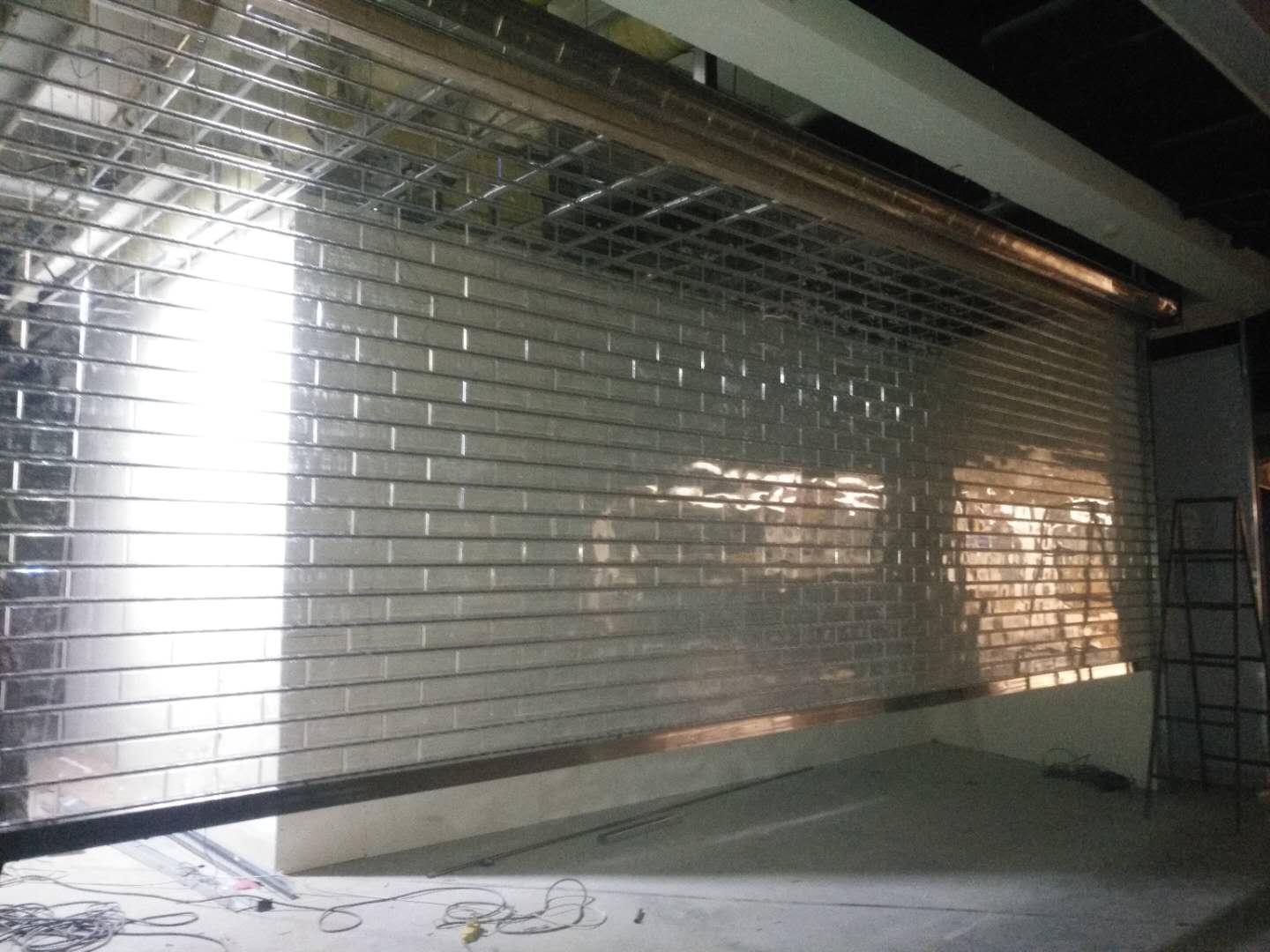

济南卷帘门
Jinan roller shutter door
防火卷帘门应用控制方法:
Application control method of fire shutter door:
用于疏散通道的卷帘门控制器应具有两步关闭的功能,并应向消防联动控制器发出反馈信号。防火卷帘门控制器接收到火灾报警信号后,应能控制自动关闭到中位处停止;接收到二次报警信号后,应能控制防火卷帘门继续关闭全闭状态。
The shutter door controller used for evacuation passageway shall have the function of two-step closing, and shall send feedback signal to the fire linkage controller. After receiving the fire alarm signal, the fire shutter door controller should be able to control the automatic closing to the middle position; after receiving the secondary alarm signal, it should be able to control the fire shutter door to continue to close to the fully closed state.
用于分隔防火分区的防火卷帘门控制器在接收到防火分区内任一火灾报警信号后,应能控制到全关闭状态,并应向消防联动控制器发出反馈信号。
After receiving any fire alarm signal in the fire compartment, the fire shutter door controller used to separate the fire compartment shall be able to control to the fully closed state, and shall send feedback signals to the fire linkage controller.
联动控制方式:防火分区内任两只独立的感烟火灾探测器或任一只专门用于联动防火卷帘门的感烟火灾探测器的报警信号应联动控制卷帘门下降距楼板面 1.8m 处;任一只专门用于联动感温火灾探测器的报警信号应联动控制防火卷帘门下降到楼板面。


Linkage control mode: the alarm signal of any two independent smoke fire detectors or any smoke fire detector specially used for linkage fire shutter door in the fire compartment shall linkage control the rolling shutter door to drop to 1.8m away from the floor; the alarm signal of any one specially used for linkage temperature fire detector shall linkage control the fire shutter door to descend to the floor.
手动控制方式:应由防火卷帘门两侧设置的手动控制按钮控制升降。
Manual control mode: the lifting shall be controlled by the manual control buttons set on both sides of the fire shutter door.
防火卷帘门是重要的消防设施,在各个建筑以及公共区域中使用,可以在遇到火灾时起到对人们保护的作用,为救援争取时间。以上是防火卷帘门厂家为大家介绍的关于产品控制要求与方法的详细内容,如果您需要这种产品,可以来电咨询。
Fire shutter door is an important fire-fighting facilities, used in various buildings and public areas, it can play a role in protecting people in case of fire and fighting for time for rescue. The above is the detailed content about the product control requirements and methods introduced by the manufacturer of fireproof rolling shutter door. If you need this product, you can call for advice.
