Whether it is in the enterprise factory or in the personal garage, can be applied to the fire shutter door, in order to meet the user's higher demand, the safety measures of the rolling shutter door are also gradually improved. Rolling shutter door is generally customized, before the customization, there will be a special person to measure the use place of the rolling shutter door. Below, Jinan fire shutter door manufacturer Baiteng takes you to understand the points needing attention when measuring the rolling shutter door, hoping to help you!

1.顶墙直角

1. Right angle of top wall

测量者应主动征求客户的意见。，顾客选择保留统一美观的线条，测量器可将目标尺寸缩小(缩短)60毫米，达到目的;其次，客户选择的目标尺寸保持不变，安装人员在安装过程中尽可能小地进行切割。

The surveyor should take the initiative to solicit the opinions of customers. First of all, the customer chooses to keep the uniform and beautiful lines, and the measuring instrument can reduce (shorten) the target size by 60 mm to achieve the purpose; secondly, the target size selected by the customer remains unchanged, and the installation personnel cut as little as possible during the installation process.

2.单直角墙

2. Single right angle wall

测量者应该主动征求顾客的意见。结果如下：一是客户选择左右保留线条，统一美观，测量者和客户表示目标尺寸减少了60毫米，从而实现了保持线条的愿望。

The surveyor should take the initiative to solicit the opinions of customers. The results are as follows: first, the customer chose to keep the left and right lines, which were unified and beautiful. The surveyor and the customer said that the target size was reduced by 60mm, thus realizing the desire to keep the line.

二是客户选择的目标尺寸不变(客户要求门扇稍大)，有必要向客户解释清楚，直角墙框架边缘线应安装并切割，直到合适为止(效果是线左右不对称)。

Second, the target size selected by the customer remains unchanged (the customer requires a slightly larger door leaf). It is necessary to explain clearly to the customer that the edge line of the right angle wall frame should be installed and cut until it is suitable (the effect is that the line is asymmetric from left to right).

3.双面直角墙

3. Double sided right angle wall

济南防火卷帘门厂家建议调查员应主动征求济南卷帘门客户的意见。结果如下：一是顾客选择左右保留线条，统一美观，测量员可以将目标尺寸缩小120毫米，达到目的;其次，客户选择的目标尺寸保持不变，安装人员将双面直角墙附近的线向右切割。

Jinan fire shutter manufacturers suggest that investigators should take the initiative to solicit opinions from customers of Jinan rolling shutter doors. The results are as follows: first, customers choose to keep the left and right lines, unified and beautiful, the surveyor can reduce the target size by 120 mm to achieve the purpose; secondly, the target size selected by the customer remains unchanged, and the installation personnel cut the line near the double-sided right angle wall to the right.

4.地面

4. Ground

由于客户的实际情况差异很大，通常分为两类：

Because the actual situation of customers is very different, it is usually divided into two categories:

一是地板已经铺好，可以用上述测量方法测量;

One is that the floor has been paved and can be measured by the above measurement method;

二是未铺砌，高度应降低：1.地砖：大理石和瓷砖减少50毫米;2.铺木地板、复合地板、实木地板统一减少30毫米;3.骨架木地板以骨架和实际地板厚度增加10毫米为准。

The second is not paved, the height should be reduced: 1. Floor tile: marble and ceramic tile reduced by 50 mm; 2. Flooring, composite floor, solid wood floor unified reduced by 30 mm; 3. Skeleton wood floor with skeleton and actual floor thickness increased by 10 mm.

5.左右墙和顶墙的垂直度和倾斜度。测量者应注意选择大点作为目标尺寸。

5. Verticality and inclination of left and right walls and top walls. The surveyor should pay attention to select the largest point as the target size.

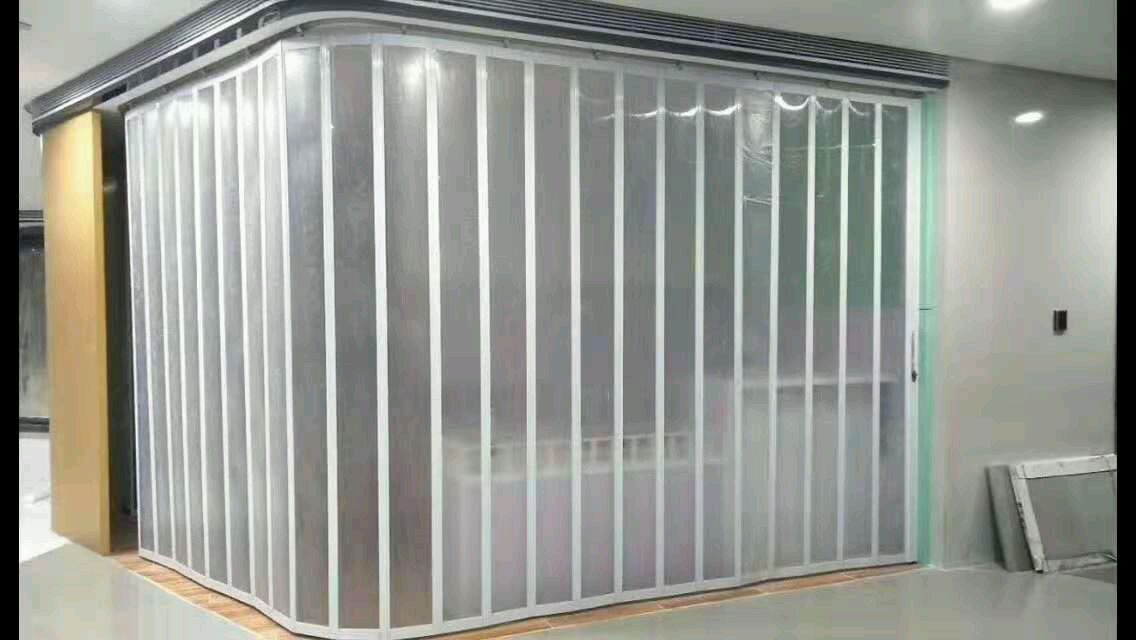

济南防火卷帘门

Jinan fire shutter door

以上就是济南防火卷帘门厂家介绍的关于卷帘门测量时应该注意的五点，大家都清楚了吗?希望这些内容能帮助到大家。如果想要了解更多的相关资讯，可以关注我们的网站，也可以和我们联系!

The above is Jinan fire shutter door manufacturers on the rolling shutter door measurement should pay attention to the five points, we are clear? Hope these contents can help you. If you want to know more about it, you can pay attention to our website or contact us!
