Although there are many types of rolling shutter doors in Jinan, such as wind resistant rolling shutter doors, the sales volume of electric rolling shutter doors is much higher than that of manual rolling shutter doors. Many people are interested in the installation of Jinan electric rolling shutter door. Today, the rolling shutter door manufacturer will introduce the installation tutorial of electric rolling shutter door for you in detail.

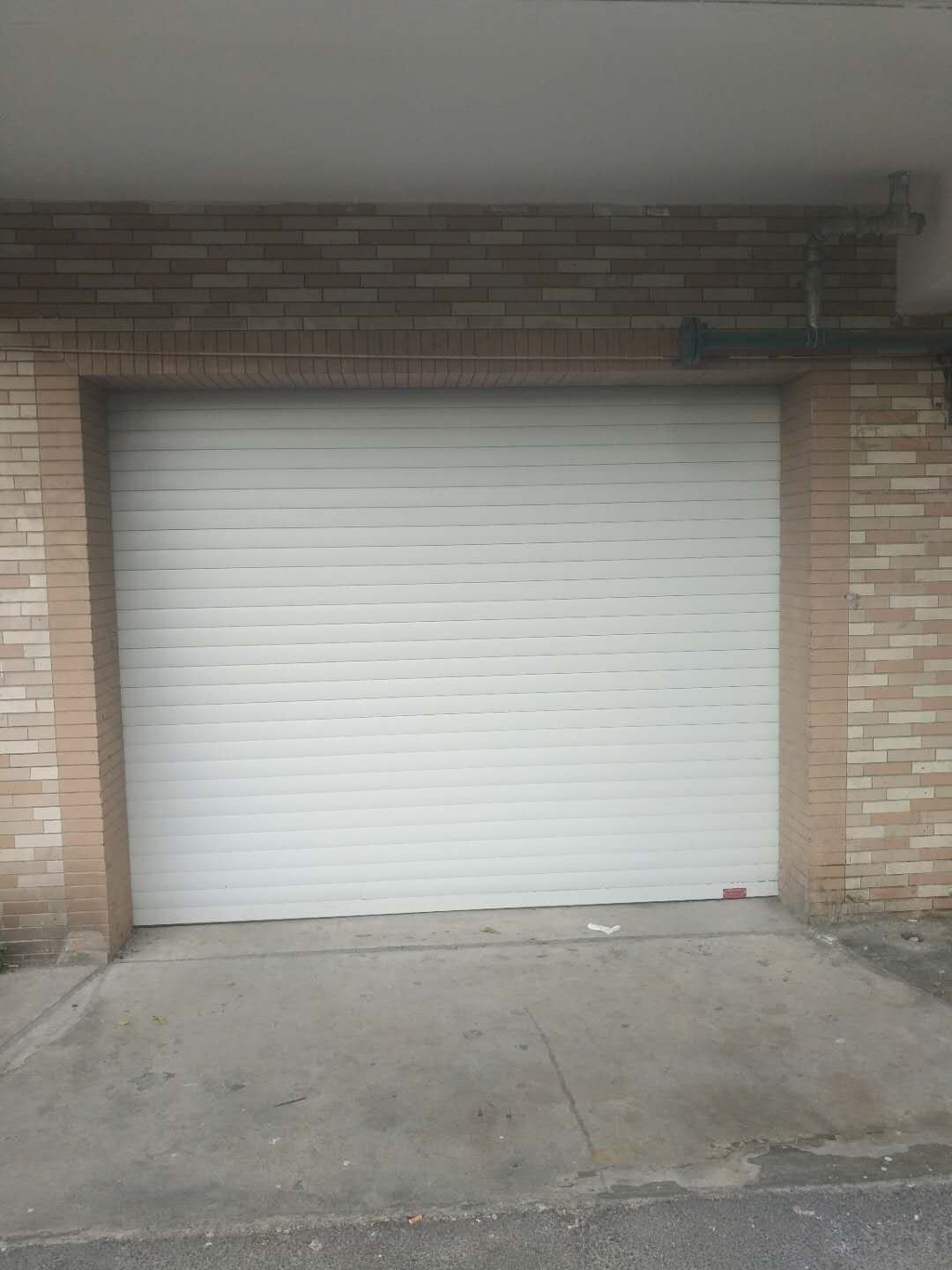

济南卷帘门

Jinan roller shutter door

一、安装大小铁板

1、 Installation of large and small iron plates

电动卷帘门大小铁板的安装又分为垂直安装和水平安装两种，其中垂直安装主要用于大铁板的下口，门洞口向上5cm来确定安装位置。水平安装则是以圆管长度减去门洞长度加2cm除以2，两边平分来确定大小铁板之间位置安装。小铁板以大铁板的点水平来确认小铁板的水平点安装位置。

The installation of large and small iron plates of electric rolling shutter door is divided into vertical installation and horizontal installation. Vertical installation is mainly used for the lower opening of large iron plate, and the installation position is determined by 5cm upward of door opening. For horizontal installation, the length of the round pipe minus the length of the door opening plus 2cm divided by 2, and the two sides are equally divided to determine the position between the large and small iron plates. The installation position of the small iron plate is confirmed by the level of the center point of the large iron plate.

二、安装圆管

2、 Install round pipe

将圆管有缺口一侧套在大铁板的链盘上，再将轴承座套在圆管轴头上，用螺丝将轴承座紧固在小铁板上。

Put the notched side of the round pipe on the chain plate of the large iron plate, and then put the bearing seat on the shaft head of the round pipe, and fasten the bearing seat on the small iron plate with screws.

三、安装电机

3、 Install the motor

电动卷帘门的电机在安装一定要牢固，链条松紧应适当。电机上的所有接线头需用电工胶带缠紧，禁止将多余电源线缠绕在电机上，以防止电机发热造成的电源线漏电、短路等隐患。

The motor of the electric rolling shutter door must be firmly installed, and the chain tightness should be appropriate. All terminals on the motor shall be wrapped tightly with electrical tape. It is forbidden to wind the redundant power line on the motor to prevent the power line leakage, short circuit and other potential safety hazards caused by motor heating.

四、安装门体

4、 Install the door body

将电动卷帘门的吊沿片、底梁串到门片上，门片通过电机上升适当位置，再将吊沿片紧固在圆管上，进行上下调整，保持上下对齐，加紧门片，防止窜体卡口。

The hanging edge piece and bottom beam of the electric rolling shutter door are connected to the door piece. The door piece is lifted to the appropriate position through the motor, and then the hanging edge plate is fixed on the round pipe for up and down adjustment to keep the alignment between the upper and lower parts, and tighten the door piece to prevent the channeling bayonet.

五、安装导轨

5、 Install the guide rail

将事先依照尺寸、要求制作好的抗风门导轨立于门洞两侧，注意上下两头需保持水平。再用螺栓固定好轨道，结束之后盖好工业门导轨封盖。

Put the anti wind door guide rail made according to the size and requirements in advance on both sides of the door opening, and pay attention to keep the upper and lower ends horizontal. Then fix the track with bolts, and cover the guide rail cover of industrial door after finishing.

六、调试限位

6、 Commissioning limit

电动卷帘门的限位在电机里，打开电机外壳，调整门体的上、下限位，要求上限位距离门洞少要有一个底梁位置，下限位与地面要保持密封。多次反复试验几次，直到上下开门达到理想位置即可停止。

The limit of the electric rolling shutter door is in the motor. Open the motor shell and adjust the upper and lower limits of the door body. It is required that there should be at least one sill position between the upper limit and the door opening, and the lower limit should be sealed with the ground. Repeat the test several times until the upper and lower doors reach the ideal position.

上述内容便是济南电动卷帘门的安装教程，大家可以好好了解一下，对于大家安装电动卷帘门是很有帮助的。

The above content is Jinan electric rolling shutter door installation tutorial, you can have a good understanding, for you to install electric rolling shutter door is very helpful.
